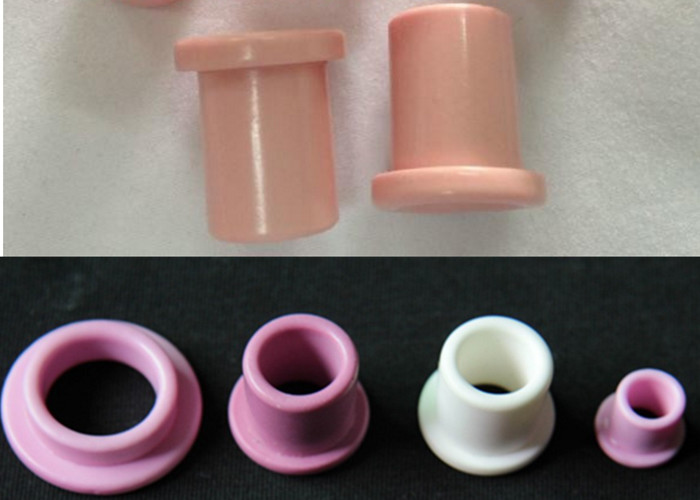

Wear Resistance Corrosion Resistance Aluminum Oxide Ceramic , 95-99 Alumina Ceramic Guide

Name: Wear Resistance Corrosion Resistance Aluminum Oxide Ceramic 9599 Alumina Ceramic Guide
Brand: KAMTAI
Price: 1 USD

Brand Name : KAMTAI

Model Number : KTJC16

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 1000PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram,PAYPAL

Supply Ability : 10000PCS/ MONTH

Delivery Time : 25 DAYS AFTER PAYMENT

Packaging Details : CARTON BOX AND PLYWOOD PALLET

Young's Modulus : 280GPA

Flexural Strength ( at R.T. ) : ＞280GPA

Name : Wear resistance and corrosion resistance 95-99 Alumina Ceramic guide

Application : Textile machine

Features : High strength and High temperature resistance

Using life : Long

Contact Now

Aluminium Oxide, Al2O3 is the most widely applied and cost effective technical ceramic material. It offers a combination of superior mechanical strength and electrical properties, wear resistance and corrosion resistance. The maximum working temperature is up to 1700 °C with relatively high thermal conductivity. It is also an electrically insulating material with a high electrical resistivity. The good corrosion resistance makes it insoluble in water and slightly soluble in strong acid and alkaline solution.

KAMTAI manufactures and provides alumina ceramic components for a wide range of application like Mechanical Equipment, Electronic & Electrical, Oil Drilling, Medical, Chemical Industry etc. According to actual application and customer's requirement, the purities vary from 95%-99.7% and the forming methods will be different. The forming methods applied in our plant include dry pressing, isostatic pressing, injection moulding, extrusion moulding. With experienced engineers and talented workers, we are confident to offer high quality, high precision, complex components for customers worldwide.

Other information:

Feature	Application	Main usage
1.Great mechanical strength	Electric appliance industry Automotive industry	1.Heat treatment furnace and toughened furnace
2.High softening temperature
3.Good resistance to thermal impact
4.Small thermal expansion coefficient	Mechanical industry Engineer industry	2.Inner liner tube and heating tube in electric furnace
5.Good chill and abrupt heat properties
6. Resistance to acid and alkali corrosion

MATERIAL PROPERTIES

	Unit	95% Al2O3	99% Al2O3	ZrO2	GP-Si3N4
Color	-	white	ivory	white	gray
Density	g/cm³	3.65	3.88	5.95	3.22
Water Absorption	%	0	0	0	0
Young's Modulus	Gpa	280	350	205	295
Vickers Hardness	Gpa	14	20	12	18-20
Flexural Strength ( at R.T. )	Mpa	280	300	900	650
Compressive Strength ( at R.T. )	Mpa	2000	2500	2200	2200
Thermal Conductivity ( at R.T. )	W/(m.K)	18-25	30	2.2	25
Thermal Shock Resistance	ΔT(°C)	220	180-200	280-350	450-650
Max. Working Temperature ( at R.T. )	°C	1500	1700	850	1200
Volume Resistivity ( at R.T. )	Ω.cm	>10^15	>10^14	>10^12	>10^14
Dielectric Constant (1 MHz at R.T. )	-	9.50	9.80	26	8.20
Dielectric Strength	kV/mm	16	22	-	16
